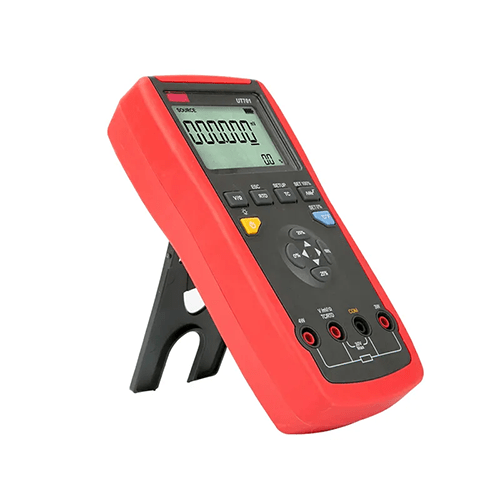

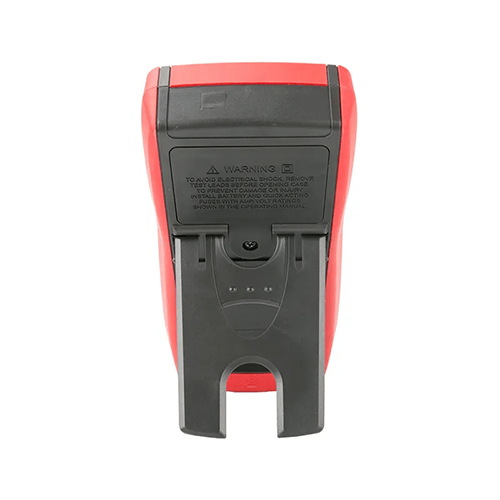

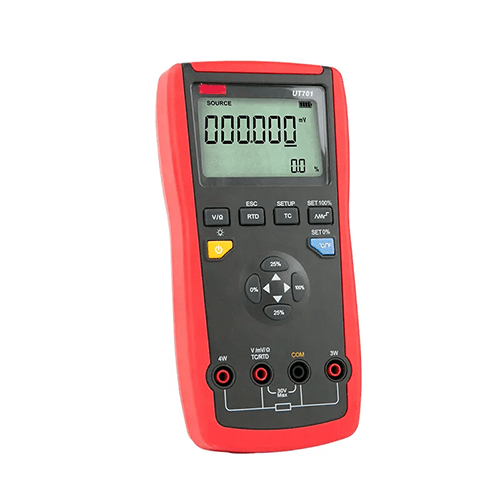

Acoustic Testing Pro Dc Voltage Performance Stability Calibrator
Acoustic Testing Pro DC voltage performance stability calibrator is equipped with 10 types of thermocouples, 4 types of thermal resistance, and voltage or resistance output functions.
Overview
Acoustic Testing Pro DC voltage performance stability calibrator is equipped with 10 types of thermocouples, 4 types of thermal resistance, and voltage or resistance output functions, which are professional and convenient for users to calibrate and maintain various temperature testers. Easy-to-operate keys, selectable steps and ramp outputs make operation efficient and accurate. It features LCD backlight, auto power off, two-color injection molded case, and 39.37 in (1 m) drop resistance.
Features
- Up to 0.05% output accuracy
- 6-digit display
- Output functions DC voltage, resistance, thermocouple and RTD
- 10 thermocouple scales, 4 RTD scales
- High precision automatic cold junction compensation for thermocouple output
- Manual stepping and automatic stepping and ramp to store and recall settings
Technical Specifications
| DC mV | 100 mV ± (0.05%+20) 1000 mV ± (0.05%+3) |
|
| Resistance (Ω) | 500 Ω ± (0.05%+2) 5000 Ω ± (0.05%+2) |
|
| RTDs | Pt10 | -328 °F to 1562 ℉ (-200 °C to 850 ℃) ± (0.5% 42.8 °F (6 ℃)) ± (0.05% 33.08 °F (0.6℃)) |
| Pt100 | ||
| Cu50 | -58 °F to 302 ℉ (-50 °C to 150 ℃) ± (0.05% 33.08 °F (0.6 ℃)) |
|
| Cu100 | ||
| Product Size | 3.78 in x 7.60 in x 1.85 in (96 mm x 193 mm x 47 mm) | |
| Product bare metal weight | 0.90 lb (410 g) | |
