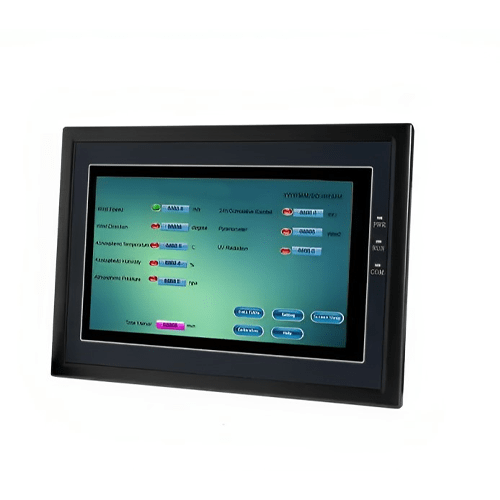

Acoustic Testing Pro Data Logger for Temperature Humidity
Acoustic Testing Pro data logger for temperature humidity is a core component of automatic weather station, which can connect 32 parameters at the same time, can communication with PC via cable or wireless connection, provides communication protocol, convenient for secondary development.
Overview
Acoustic Testing Pro data logger for temperature humidity with data acquisition, storage, transmission and management, and other functions, is the core component of automatic weather station, which can connect 32 parameters at the same time, has the settings and color LCD display, can communication with PC via cable or wireless connection, provide communication protocol, convenient for secondary development.
Features
- Real-time display
- Multiple sensor interface
- Large storage
- Types of communication interface
- Optional U disk, SD external storage
- Wireless optional
- Solar power supply optional
- Self-contained clock chip
- HMI app & Software
Technical Specifications
| Display | 3.5 in TFT true color LCD display |
| Input channels | 1 to 18 optional |
| Input signal | 4 mA to 20 mA, 0 mA to 10 mA, 0 mA to 20 mA |
| internal storage capacity | 48m |
| External storage | U Disk |
| Supply | AC 220 V, D C24 V |
| Power consumption | 20 VA |
| power-drop protection | Data stored in the internal flash, historical data and configuration parameters will not be lost when power supply drop |
| Alarm output | max 4 channels |
| Accuracy | 0.2% FS |
| Dimension | 3.7 in × 3.7 in × 3.9 in (96 mm × 96 mm × 100 mm) |
| Installation of panel thickness | 0.05 in × 0.2 in (1.5 mm to 6 mm) |
| Weight(unpacked) | 13.05 oz (370 g) |
