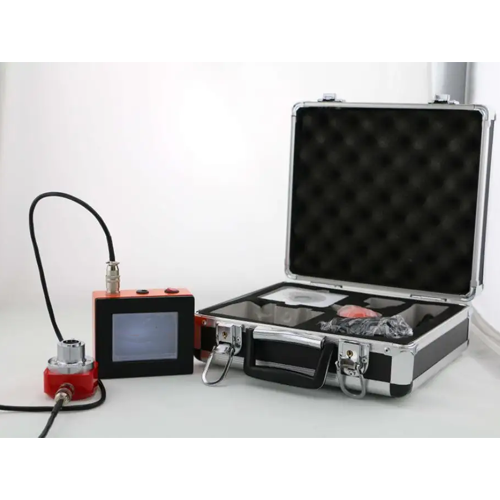

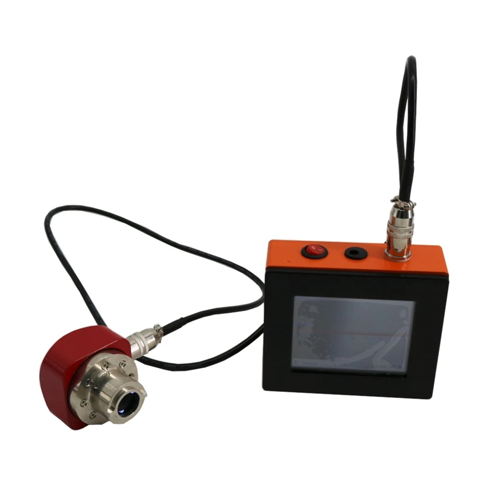

Acoustic Testing Pro Crack Width Gauge
Acoustic Testing Pro crack width gauge can be widely used in bridges, tunnels, buildings, concrete pavement, metal surface crack width.
Features
- An automatic interpretation of the crack width, directly to the crack width values are displayed on the screen
- Automatic shooting crack photos, real-time image display
- Stored photos, data can be playback viewing
- probe (camera) comes with lighting fixtures, work around the clock, from the light changes
- Simple alignment of cracks can be automatically reading, without any set up, fool operation
- Crack photo as a standard BMP format, direct shoot storage to any U disk / SD card
- The only in the cracks in the photo while preserving fracture images, the width of the data, scales, zoom factor and the crack number
- Host and the probe share a lithium battery-powered
Technical Specification
| The maximum detection range | 0 in to 0.31 in (0 mm to 8 mm) |
| Accuracy | better than 0.00 in (0.01 mm); |
| Magnification | 40 times; |
| The Operating Temperature | -4 °F to 140 °F (- 20 °C to 60 ° C); |
| Host Interface | standard USB; |
| The storage media | can be stored for more than 3000 photos (SD Card is free to expand); |
| Image storage format | BMP format, 24-bit color / 320 × 240; |
| Power supply | lithium battery, standby time: 18 hours; |
| Size | Host 4.45 in x 2.76 in x 0.65 in (113 mm x 70 mm x 16.5 mm) |
| Probe | 1.89 in x 2.20 in x 2.28 in (48 mm x 56 mm x 58 mm) |
| Weight | host 0.22 Ib (100 grams), 0.22 Ib (100 grams) of the probe |
