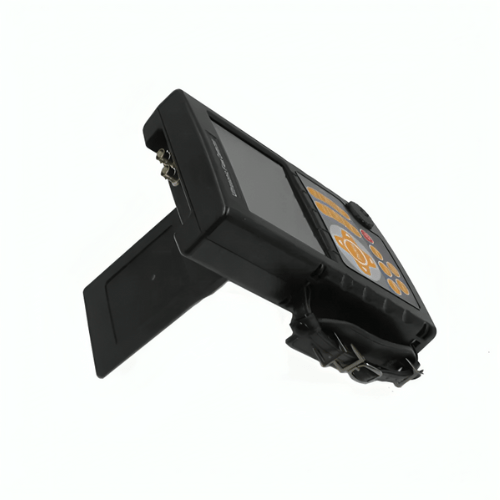

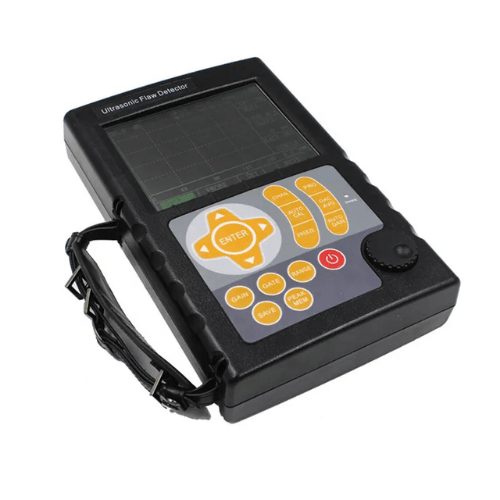

Acoustic Testing Pro Crack Detector
The CDDL Crack Detector has a measuring range 0 mm to 6000mm, gain of 0 to dB 100 dB, D-Delay of -20µs to +3400 µs, and resolution of 0.1mm to 1 mm
Features

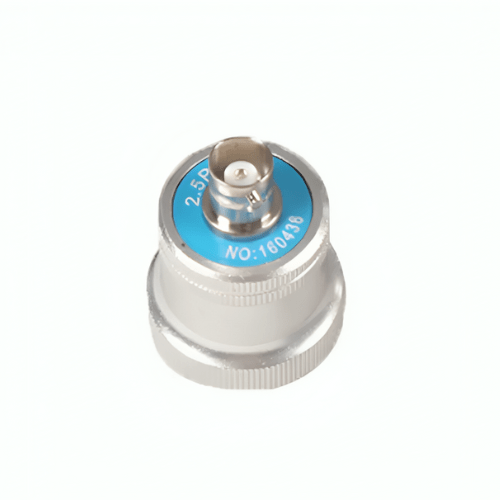

- Automated calibration of transducer Zero Offset aor Velocity;
- Automated gain, Peak Hold and Peak Memory;
- Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф);
- Automated switch (Depth d,level p,distance s);
- 100 independence setup,any criterion can be input freely, we can work in the scene without test block;
Technical Specifications
| Measuring Range | 0 mm to 6000 mm |
| Gain | 0 dB to 100dB |
| D-Delay | -20 µs to +3400 µs |
| Resolution | 0.1mm (2.5mm to 100mm) 1mm (>100) |
| P-Delay | 0µs to 99.99µs |
| Material Velocity | 1000 m/s to 9999m/s |
| Temperature | -68 °F to 122 °F (-20 ℃ to 50 ℃) |
| Humidity | 20% to 90%RH |
| Power | 7.4 V 4800 mAh |
| Working Time | >8 hours |
| Display | LED true color |
