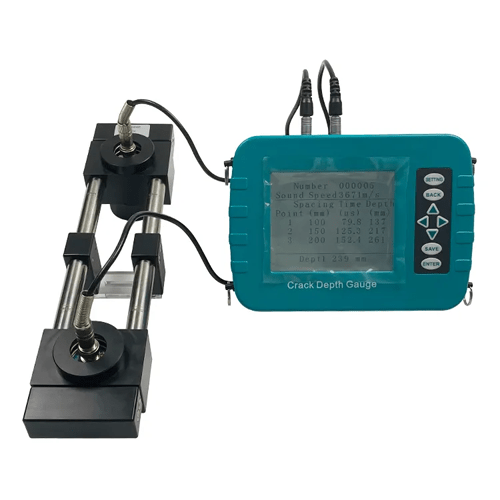

Acoustic Testing Pro Crack Depth Gauge Tester
Acoustic Testing Pro crack depth gauge tester is based on the principle of acoustic diffraction to measure the crack depth of concrete surface.
Overview
Acoustic Testing Pro crack depth gauge tester is based on the principle of acoustic diffraction to measure the crack depth of concrete surface.
Features
- New upgraded wireless cloud transmission function
- It adopts three anti-shell design, waterproof, dustproof and shockproof
- On-site testing is simple and fast
- The instrument is easy to operate, fast to master
- High accuracy
- Use bracket test without scribing greatly improving test efficiency
Technical Specifications
| Crack Depth Test Range | ≤19.7 in (≤500 mm) |
| Test Error | ≤0.2 in (≤5 mm) or 2% to 10% of the actual depth |
| Data Storage Capacity | 20000 sets |
| Data Transmission Method | Wireless cloud transmission(optional) |
| Power Supply | Large capacity lithium battery |
| Working Environment | Temperature: 14 °F to 104 °F (-10 °C to 40 °C) Humidity: <90% RH |
| Packing Specification | Material: engineering plastic Volume:16.5 in x 5.5 in x 13.2 in (420 mm x 140 mm x 335mm) Weight: 12 lb (5.5 kg) |
