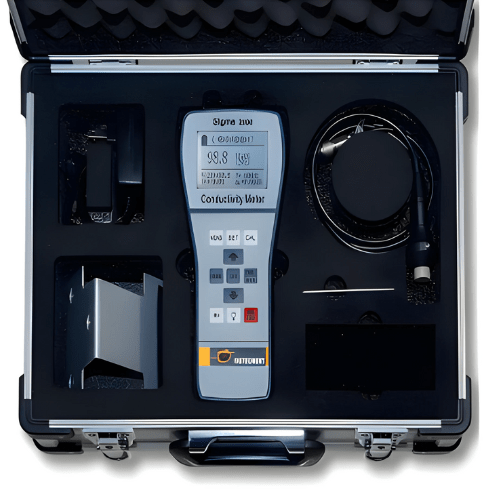

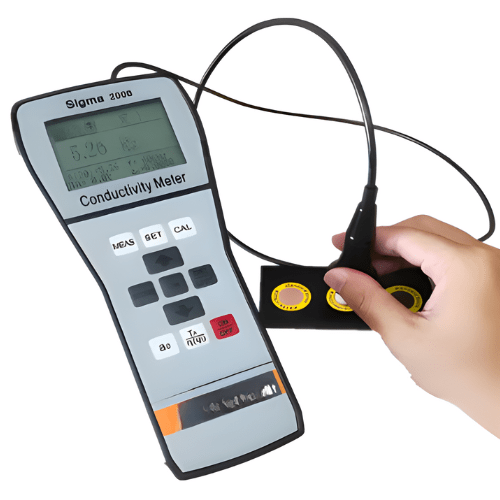

Acoustic Testing Pro Conductivity Meter Resistivity Tester
Acoustic Testing Pro conductivity meter resistivity tester is used for distinguishing, grading, and state detecting for non-ferromagnetic metal.
Overview
Acoustic Testing Pro conductivity meter resistivity tester is used for distinguishing, grading, and state detecting for non-ferromagnetic metal. These are commonly used in industries of machinery, electric power, aviation, aerospace, nuke, military, etc.
Features
- Sleek and portable design, easy to handle and carry for on-the-go use
- Large screen with clear
- Bold font for simultaneous display of various parameters
- Backlight illumination for easy reading of data in low-light conditions
- Features special temperature coefficient setting
- Auto-calibrating mode for user convenience and reliability
- Incorporates lift-off compensation and temperature compensation
- Interchangeable probes
- Built-in data memory capable of storing up to 16000 groups
- Offers two measuring units (MS/m or %IACS) f
Technical Specifications
| Working Freq. | 60 KHz, sine wave |
| Measurement Range For Conductivity | 0.51 % IACS to 112 % IACS, or 0.3 MS/m to 65 MS/m or resistivity 0.015388 Ω mm²/m to 3.33333 Ω mm²/m |
| Resolving Power | 0.01 % IACS (when <51 % IACS) and 0.1 % IACS (51 % IACS to 112 % IACS) |
| Measuring Precision | ±0.5 % reading |
| Lift-Off Effect | Probe compensation 0.5 mm |
| Display | Liquid crystal big screen, back-light designed, multiple items of important parameter displayed simultaneously. |
| Power Supply | Equipped with a lithium-ion battery of 2200 mA/h |
| Reading Memory | Storage for 16000 groups of measured data files. |
| Communication With PC Machine | RS 232 interface |
| Working Frequency | 60K Hz and sine wave |
| Normal Working Environment | Temp. 32 °F to 122°F (0 ℃ to 50℃) and relative humidity, 0 % to 95 % RH |
| Temp. Measurement | 32 °F to 122 °F (0 ℃ to 50 ℃) (precision 33.9 oF (0.5℃)) |
| Dimension Of Host Machine | 8.66 in × 3.74 in × 2.16 in (220 mm x 95 mm x 55 mm) |
| Weight Of Host Machine | 1.10 lb. (0.5 kg (including batteries)) |
