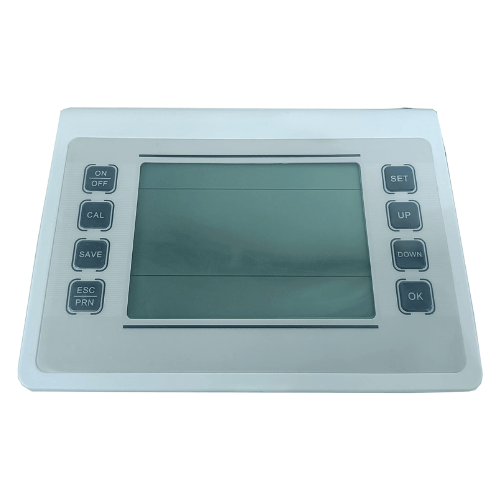

Acoustic Testing Pro Conductivity Meter
This Conductivity meter has a pH measuring range of -2.00 pH to 18.00pH, resolution of 0.01 pH and 1 point, 2-point, 3 point of auto calibration.
Features
- 6.5 inch LED screen with concise and friendly-use interface
- Built-in microprocessor chip has Intelligent functions such as automatic calibration, ATC, data storage, clock display, USB output, function settings, wireless printing, and self-diagnosis information, etc.
- It supports wireless Bluetooth printing. Real-time data transfer to mobile phone via Bluetooth is optional
- Smart electrode status display to ensure accurate use
- Omron long lasting and light touch key can be used more than 100,000 times
- Can store 1000 sets of test data, which can be saved and transferred to USB memory stick and opened with Excel
- Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale
- It has functions of ATC, auto salinity compensation and auto pressure compensation.
- Polarographic DO electrode, short polarization time (3 to 5minutes)
- Can test electric potential, pH, pX, ORP, ion concentration and temperature
Technical Specifications
| pH Measuring Range | -2.00 pH to 18.00pH |
| Resolution | 0.01 pH |
| Accuracy | Electrode: ± 0.01 pH, Meter: ± 0.02 pH |
| Auto Calibration | 1 point, 2-point, 3 points |
| Input Current | ≤ 2 x 10 -12 A |
| Input Impedance | >= 1 x 1012 Ω |
| Stability | ± 0.02 pH pr 3h |
| mV OR Measuring Range | -1999.9 mV to 0 mV to 1999.9 mV |
| Resolution | 0.1 mV |
| Accuracy | ± 0.03 % FS |
| pX Measuring Range | 0.000 pX to 14.000pX |
| Resolution | 0.01 pX |
| Accuracy | ± 0.02 pX |
| Auto Calibration | 1 point, 2 point, 3 point, 4 point, 5 points |
| Ion Concentration. Measuring Range | 0 to 19990 |
| Resolution | 4 significant figures (scientific notation) |
| Accuracy | ± 0.5 % |
| Cond. Measuring Range | Conductivity |
| 0.00 to 20.00 uS per cm, 20.0 to 200.0 uS per cm | |
| 200 to 2000 us per cm, 2.00 to 20.00 mS per cm | |
| 20.0 to 200.0 mS per cm | |
| 200 to 20000 mS per cm (k=10) | |
| TDS 0 to 100 g per L | |
| Salinity: 0 ppt to 100 ppt | |
| Resistivity: 0 to 100 MΩ•cm | |
| Resolution | 0.01 or 0.1 or 1uS per cm, 0.01 or 0.1 mS per cm |
| Accuracy | Electrode: ± 0.5 % FS, Meter: ± 0.8 % FS |
| Electrode Constant | 0.1 or 1 or 10 cm 1 |
| DO Measuring Range | (0 to 20.00) mg per L (ppm), (0 to 200.0) % |
| Resolution | 0.1 or 0.01 mg per L(ppm), 1 or 0.1% |
| Accuracy | Electrode: ± 0.1 per mg per L, Meter: ± 0.40 mg per L |
| Residual Current | ≤0.1mg per L |
| Salinity Compensation | 0 ppt to 45ppt, auto |
| Pressure Compensation | (80 Kpa to 105) kPa, auto |
| Auto Calibration | Air saturated by water, water saturated by air |
| Electrode Type | Polarographic |
| Display | 6.5 inch LED screen |
| Data Storage | 1000 sets |
| IP Grade | IP 54 |
| Power | 12 V or 1 A |
| Ambient Humidity | ≤ 85 % |
| Output | USB and Bluetooth |
| Ambient Humidity | ≤85% |
| Reference Temp. | 77 ºF (25ºC),68 ºF (20ºC), 64.4 ºF (18ºC) |
| Temp. Compensation | 32 ºF to 122 ºF (0 ºC -50) ºC, auto |
| Response Time | 77 ºF ≤ 30 s (25 ºC, 90%response) |
| Ambient Temp. | 41 ºF to 95 ºF (5 ºC to -35ºC) |
| Resolution | 32.1 ºF (0.1 ºC) |
| Temp. Compensation | 32 ºF to 212 ºF (0 ºC to -100 ºC) auto or manual |
| Dimension | 8.46 in x 6.69 in x 1.45 in (215 mm x 170 mm x37 mm) |
| Net Weight | 1.32 lb. (0.6kg) |
