Name: Acoustic Testing Pro Concrete Ultrasonic Detectors - Acoustic Testing Pro
SKU: ACTPCRD-165

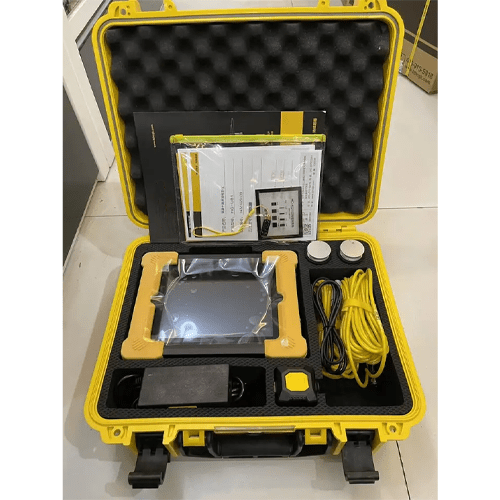

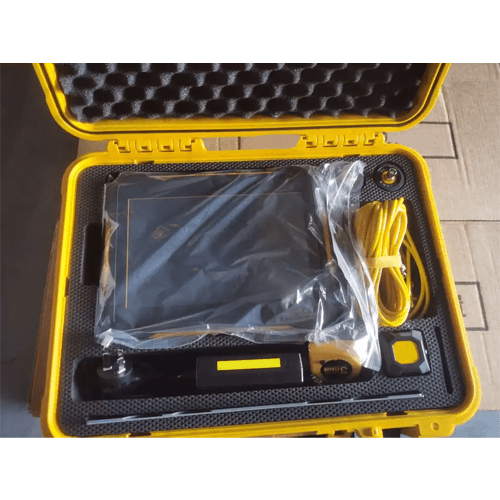

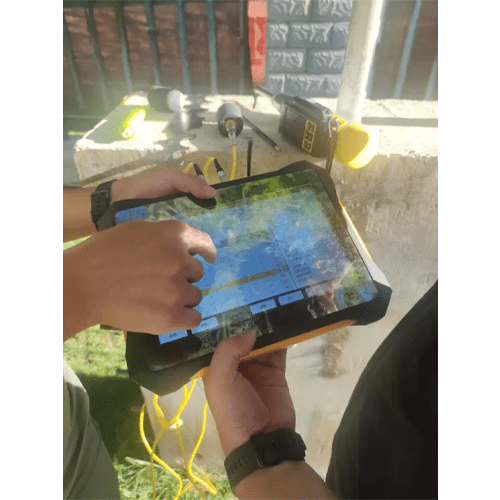

Acoustic Testing Pro Concrete Ultrasonic Detectors

Acoustic Testing Pro Concrete Ultrasonic Detectors are used for concrete strength detection, internal defects, surface crack depth, width detection, Acoustic parameters and mechanical properties of rock mass and concrete nonmetallic materials.

Overview

Acoustic Testing Pro concrete ultrasonic detectors are used for concrete strength detection, internal defects, surface crack depth, width detection, Acoustic parameters and mechanical properties of rock mass and concrete nonmetallic materials

Features

Automatic interpretation of first wave time and amplitude
10 in / 254 mm highlight touch screen and intelligent interface
6 in / 40 mm thin body
Light weight and easy to carry
Can manually adjust the sound timeline
It can replay, cover and delete the waveform of existing measuring points at will
Low power consumption design, continuous working time is more than 8 hours
USB flash drive to save data, support software upgrade

Technical Specifications

Main Control Unit	A8 professional processor
Number Of Channels	Two channels
Display Mode	10.1 in color LCD screen (1280 pixels x 800 pixels)
Trigger Mode	Automatically triggered
Sampling Interval	0.03 μs to 2000 μs
Sampling Length	512 points to 2048 points multi-file optional
Receiving Sensitivity	≤10 μV
Measurement Range of Sound Time	0 μs to 4000000 μs
Amplitude Reading Range	0 dB to 170 dB
Charging Power Supply	AC 100 V to 240 V, 50 Hz 60 Hz, output 12.6 V DC, 3.0 A
Transmission Voltage	125 V, 250 V, 500 V, 1000 V multiple options
Pulse Width of Emission	0.1 μs to 100 μs
Storage Capacity	16 GB
Transfer Mode	special U disk
Host Volume	11.2 in x 8.5 in x 1.6 in (283 mm × 216 mm × 41 mm)
Host Weight	4 lb (1.8 kg)
Operating Temperature	-4 °F to 140 °F (-20 ℃ to 60 ℃)
Depth Measurement Range	0.2 in to 19.7 in (5 mm to 500 mm)
Width Measurement Range	0.0004 in to 0.4 in (0.01 mm to 10 mm)
