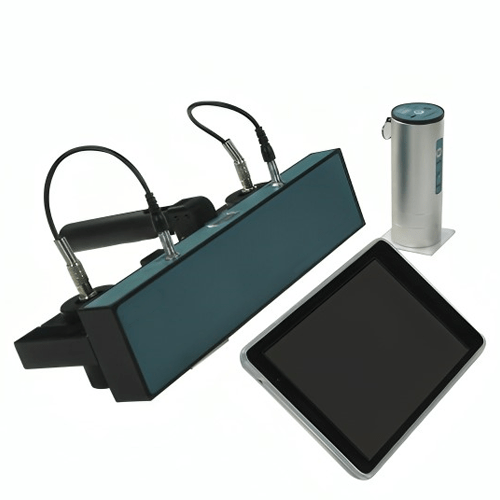

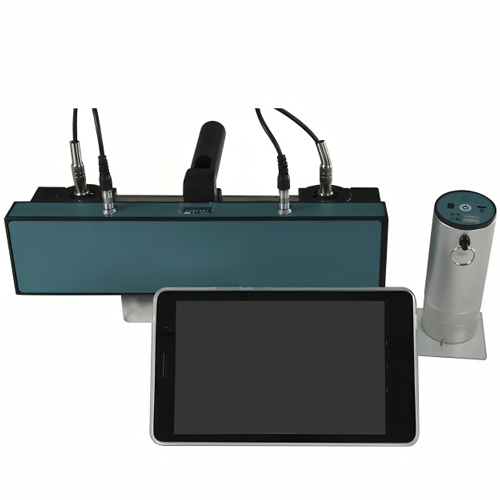

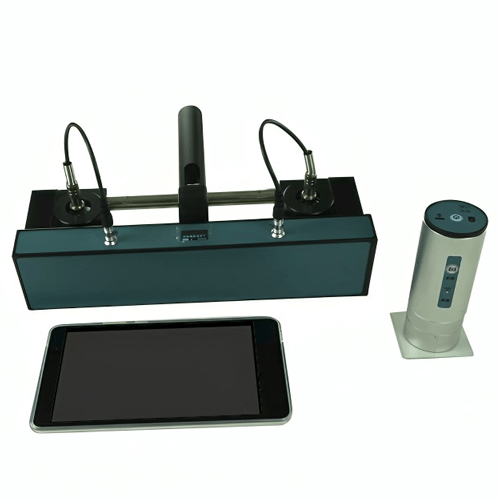

Acoustic Testing Pro Concrete Crack Monitoring Detector
Acoustic Testing Pro Concrete Crack Monitoring Detector is set for automatic measurement of crack width and crack depth on structural surface, automatic interpretation, and storage of data.
Overview
Acoustic Testing Pro Concrete Crack Monitoring Detector is set for automatic measurement of crack width and crack depth on structural surface, automatic interpretation, and storage of data.
Features
- Integrated design. Small size.
- Original wireless camera probe, quick shot button easy to operate; The main machine adopts Windows tablet, Chinese full touch operation.
- Intelligent interpretation of oblique fractures, without vertical; The image can be zoomed in and out, and the scale displayed on the interface can be interpreted manually.
- No marking of sounding support, saving time and effort; Tablet and TF card storage, super-large capacity without limit, copy data convenient, fast.
- The data analysis and report form are provided in the host computer, which can be owned without transferring to the upper computer
Technical Specifications
| MCU (Main Control Unit) | 8InchesTablet PC Windows operating system 32G storage |
| Magnification Times | Digital 60 times |
| Test Range and Accuracy | 0 to 10 mm; 0.01 mm |
| Measurement Accuracy | 5 mm or 2% to 10% of actual depth |
| Work Environment | 50 °F to 104 °F (10 ºC to +40 ºC <90%RH) |
| Package Size | 16.5 in × 5.52 in×13.2 in (420 mm x 140 mm x 335 mm) |
| Testing Range | 0.2 in to 19.6 in (5 mm to 500 mm) |
