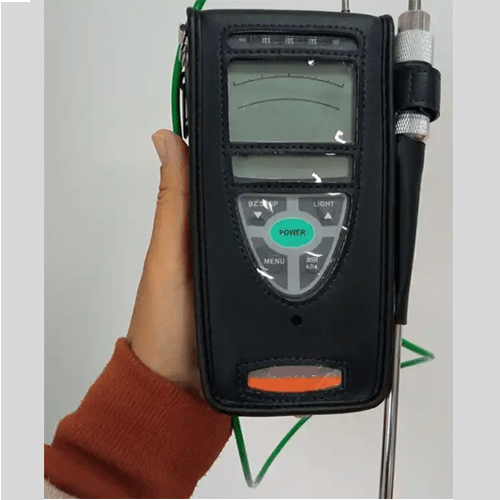

Acoustic Testing Pro Combustible Gas Detector
This combustible gas detector has Operation Temperature of 32 °F to 104 °F, Power Source of 4 x AA dry battery, and Detection Range of 0% to 100%.
Key Features
- For measurement of high concentration gas up to 100 vol%
- Suitable for inspecting the amount of gas remaining in tanks
- New digital display with a simulated analog scale
- Extended battery life of up to 30 hours
Technical Specifications
| Gas Detected | Methane, Propane, Argon, Carbon dioxide, etc. (specify gas detected) |
| Detection Principle | Thermal conductivity |
| Sampling Method | Extractive |
| Detection Range | 0% to 100% |
| Indication Accuracy (Under identical conditions) |
H range: ±5% L range: ±10% |
| Alarm Set Value | 50% |
| Display | LCD digital (with backlight) Digital display: 0% to 100% Digital bar display: Auto range changeover 0% to 10% or 0% to 30% (L range) 0% to 100% (H range) |
| Alarm Indication | Gas alarm: Intermittent buzzer, red lamp flashing Error alarm: Buzzer, Red lamp flashing, LCD display |
| Explosion-Proof Structure | Exdib IIC T 3 (TIIS) Ex II 2 G Exdib IIB T 4 Gb (ATEX) Exdib IIB T 4 Gb (IECEX) Class I, Zone 1, AEX d ib IIB 4 Hazardous Locations. (UL) |
| Operation Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Power Source | 4 x AA alkaline dry battery |
| Battery Life | Up to 30 hours |
| Dimensions | 3.2 in x 6.3 in x 1.4 in (82 mm x 162 mm x 36 mm) |
| Weight | 0.9 lb (450 g) |
