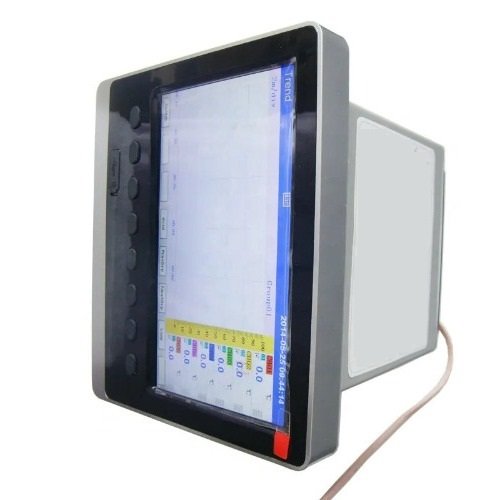

Acoustic Testing Pro Colorful Temperature Data Recorder
Acoustic Testing Pro Colorful Temperature Data Recorder input color paperless recorder (capable of inputting by means of configuration: standard voltage, standard current, thermocouple, thermal resistance, millivolt, etc.)
Overview
Acoustic Testing Pro Colorful Temperature Data Recorder input color paperless recorder (capable of inputting by means of configuration: standard voltage, standard current, thermocouple, thermal resistance, millivolt, etc.) It can be equipped with 18-channel alarm output or 12-channel analog transmitting output, RS232/485 communication interface, Ethernet interface, mini-printer interface, USB interface, and SD card socket; It can also provide sensor distribution; is equipped with powerful display function, real-time curve display, historical curve retrospection, bar graph display, alarm list display, etc.
Features
- 12 Channels
- Real Time Display
- Universal Input
Technical Specifications
| Input signal | Current: 0 mA to 20 mA, 0 mA to 10 mA, 4 mA to 20 mA, 0 mA to 10 mA square root, 4 mA to 20 mA square root | |
| Measurement accuracy | 0.2 % FS ± 1 d | |
| Sampling period | 1 s | |
| Display method | 7 in 800 x 480 dot – matrix widescreen | |
| Storage capacity | The capacity of the internal Flash memory is 64 M Byte. | |
| Recording interval | Nine options including 1, 2, 4, 6, 15, 30, 60, 120 and 140 s can be selected. | |
| Environment condition | Environment temperature: 14 °F to 122 °F(-10 °C to 50 °C)Relative humidity: 10 % to 90 % RH | |
| Working power supply | AC 85 V to 264 V (power supply of the switches), 50 Hz / 60 Hz.DC 12 V to 36 V (power supply of the switches); | |
| power consumption | ≤ 20 W | |
