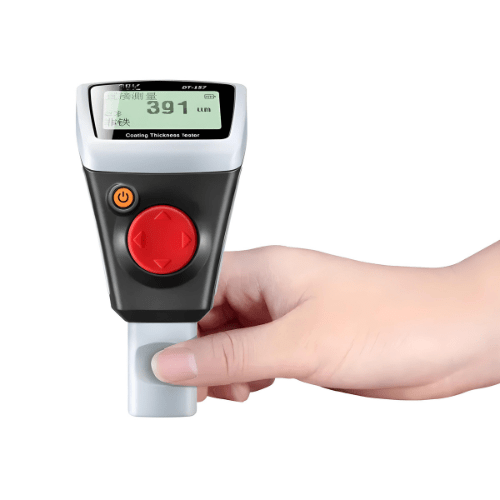

Acoustic Testing Pro Coating Thickness Tester
Acoustic Testing Pro coating thickness tester dual technology features automatic selection of magnetic induction or Eddy current measurement techniques.
Overview
Acoustic Testing Pro coating thickness tester dual technology features automatic selection of magnetic induction or Eddy current measurement techniques. The measuring data is easily transferred to the PC for edit and storage.
Features
- Non-magnetic coatings (e.g. paint, zinc) on steel
- Insulating coatings (e.g. paint) on non-ferrous metals
- Non-ferrous metals coatings on insulating substrates
- Menu operation system
- Two working modes: direct and group modes
- Statistic Display: AVG, MAX, MIN, NO., S.DEV
- One, two points calibration and basic calibration easily
- Delete single readings and all group readings easily
- Low battery, error indication
Technical Specifications
| Working Principle | Magnetic induction |
| Measuring Range | 0 um to 2000 um |
| Guaranteed Tolerance (Of Reading) | (+/- 2%+2) um |
| Repeatability | (+/- 1%+1) um |
| Low Range Precision | 0.1 um |
| Minimum Curvature Radius | 0.059 in (1.5 mm) |
| Diameter Of Minimum Area | 0.27 in (7 mm) |
| Basic Critical Thickness | 0.020 in (0.5mm) |
| Size (H x W x D) | 4.72 in x 2.36 in x 1.57 in (120 mm x 60 mm x 40 mm) |
| Weight | 0.26 lb (120 g) |
