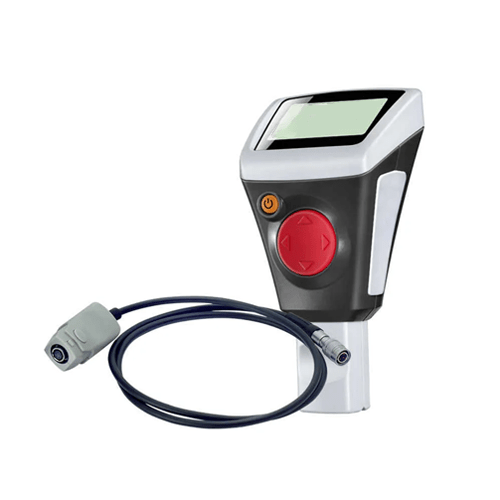

Acoustic Testing Pro Coating Thickness Gauge Meter Tester For Car Paint Automotive Metal
This coating thickness gauge has a measuring range of 0 um to 2000 um, diameter minimum area of 0.276 in, and a Basic critical thickness of 0.019 in.
Features
- Non-magnetic coatings
- Insulating coatings on non-ferrous metals
- No-ferrous metals coatings on insulating substrates
- Menu operation system
- Two working modes: DIRECT and GROUP mode
- Statistic Display: AVG, MAX, MIN, NO., S.DEV
- Delete single readings and all group readings easily
- Low battery, error indication
- Memory for 2500 readings
- 4 levels of battery indication
- Error indication
- Bluetooth interface
- Easily adapt lighting conditions with 8 levels of backlight
Technical Specifications
| Working Principle | Magnetic induction |
| Measuring Range | 0 um to 2000 um |
| Guaranteed Tolerance (of reading) | (+/- 2 % + 2) um |
| Repeatability | (+/- 1 % + 1) um |
| Low Range Precision | 0.1 um |
| Minimum Curvature Radius | 0.059 in (1.5 mm) |
| Diameter of Minimum Area | 0.276 in (7 mm) |
| Basic Critical Thickness | 0.019 in (0.5 mm) |
| Size | 4.7 in x 2.3 in x 1.5 in (120 mm x 60 mm x 40 mm) |
| Weight | 0.26 lb (120 g) |
