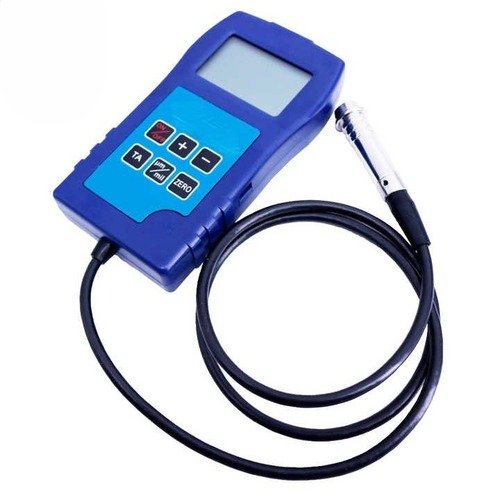

Acoustic Testing Pro Coating Thickness Gauge Meter
Acoustic Testing Pro coating thickness gauge meter, test magnetic thickness method, can be non-destructively measuring magnetic metal matrix ( such as: steel, iron, nickel ) on nonmagnetic coatings thickness ( such as: galvanized, chrome, paint, electrophoresis, enamel, rubber, powder coating, enamel, etc.).
Overview
Acoustic Testing Pro coating thickness gauge meter, test magnetic thickness method, can be non-destructively measuring magnetic metal matrix ( such as: steel, iron, nickel ) on nonmagnetic coatings thickness ( such as: galvanized, chrome, paint, electrophoresis, enamel, rubber, powder coating, enamel, etc.). It is a fine small integrated, convenient to carry and has metal probe It has simple operation and has a very quick test speed. It can also store 800 measurement data.
Features
- Fine small integrated, convenient to carry
- Metal probe,Simple operation, quick test speed
- Two test methods: a continuous test and a single measuring method
- Four statistical functions
- Can store 800 measurement data
- The instrument can be connected computers
- Two calibration methods
- Operation process has the buzz sound prompt
- Automatic recognition of Fe and NFe substrates
- Low voltage indication
- Metallic test head, wear resistance, not easy to damage
- Manual / automatic shutdown function
Technical Specifications
| Measuring range | 0 um to 1250 um |
| The thinnest matrix | 0.015 in (0.4 mm) |
| Measurement accuracy | ±(1% to 3%) +1.5 um |
| Resolution ratio | 0.1 um /1 um |
| Minimum curvature | Bugle 0.19 in (5 mm) ; concave 0.98 in (25 mm) |
| Minimum matrix | 0.39 in (10 mm x 10 mm) |
| Power source | three alkaline batteries (no.7) |
| Size | 5.11 in x 2.75 in x 0.94 in (130 mm x 70 mm x 24 mm) |
| Weight | 0.22 lb (100 g) |
