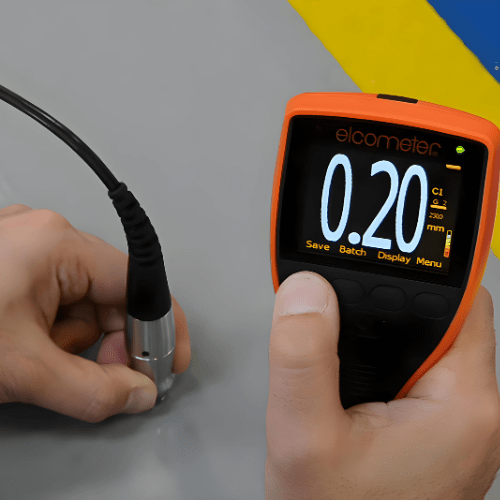

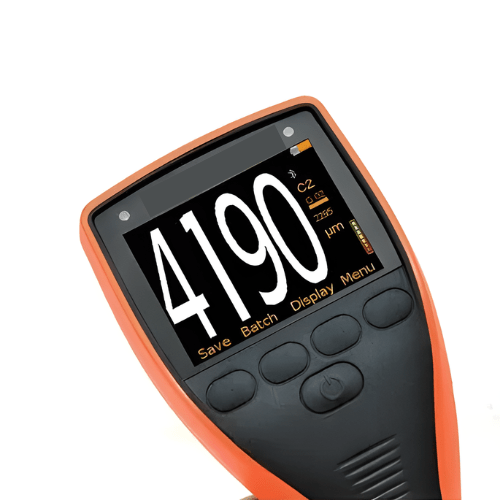

Acoustic Testing Pro Coating Thickness Gauge Cementitious Substrates
This Coating Thickness Gauge Cementitious Substrates has an operating temperature of 14°F to 122°F, accuracy of ±2%, and battery life of ≤28 hours.
Features
- Fast, accurate reading rate; 60+ readings per minute
- Repeatable & reproducible measurements
- Easy to use menu structure; in 30+ languages
- Tough, impact, waterproof & dust resistant; equivalent to IP54
- Bright color screen; with automatic rotating display (0°, 90°, 180° & 270°)
- Scratch & solvent resistant display; 2.4 in (6 cm) TFT
- USB power supply; via PC
- Test certificate & 2-year gauge warranty
- Ambient light sensor; with adjustable auto brightness
- Automatic probe recognition
- Gauge software updates2; via ElcoMaster® software
- Data Output USB; to computer
- Bluetooth®; to computer, Android™ & iOS3 devices
- Measurement units; μm, mm, mils, inch
- Signal strength indicator
- User selectable reading resolution; Low & High reading resolution
- Display modes; user selectable
- Readings
- Readings & differential; reading and the offset from a set nominal difference
- Bar Graph
- Live reading trend graph; in Batch Mode
- Run chart; trend graph of last 20 readings
- User Selectable Statistics
- Number of readings
- Nominal dry film thickness; NDFT, High & low limits; definable audible & visual alarms
- Multiple calibration methods with on screen instructions; in 30+ languages
- Material selection; preset choice of materials or create own user defined materials
- Velocity entry; direct entry of a material’s sound-velocity
- 1 Point; using a coating sample of known thickness
- Calibration lock; with optional PIN Code Unlock
- Gauge memory; number of readings – 100,000
- Number of batches; with unique calibrations -1,000
- Alpha-numeric batch names; user definable on the gauge
- Fixed Batch Size Mode; with batch linking
- Batch review graph
- Delete last reading
- Limits; 40 user definable audible & visual pass/fail warnings
- Reading save function
- Date & time stamp
- Scan Mode
- ElcoMaster® software & USB cable
- Protective case
- Plastic transit case
Technical Specifications
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Power Supply | 2 x AA batteries (rechargeable batteries can be used) |
| Battery Life | Alkaline: Approx. 15 hours Lithium: Approx. 28 hours |
| Range | 150 μm to 2,500 μm (6 mils to 98 mils) |
| Accuracy | ±2% or ±10 μm (±2% or ±0.4 mil) |
| Resolution | Low 10 μm, 0.01 mm, 1 mil or 0.001 in High 1 μm, 0.001 mm, 0.1 mil or 0.0001 in |
| Range | 750 μm to 9,000 μm (30 mils to 355 mils) |
| Accuracy | ±2% or ±10μm (±2% or ±0.4 mil) |
| Resolution | Low: 10 μm, 0.01 mm, 1 mil or 0.001 in High: 1 μm, 0.001 mm, 0.1 mil or 0.0001 in |
| Gauge Dimensions | 5.55 in x 2.87 in x 1.46 in(141 mm x 73 mm x 37mm ) without transducer |
| Gauge Weight | 0.36 lb (161 g ) including batteries, without transducer |
