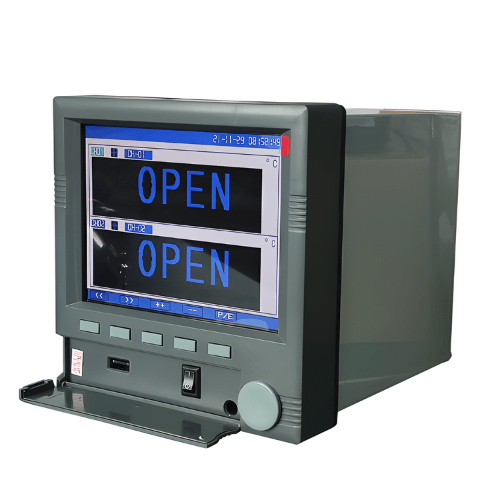

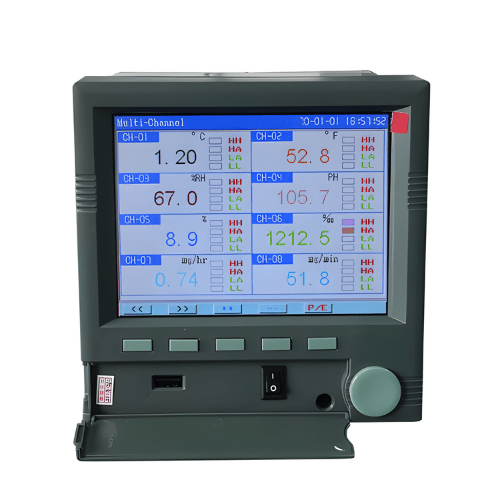

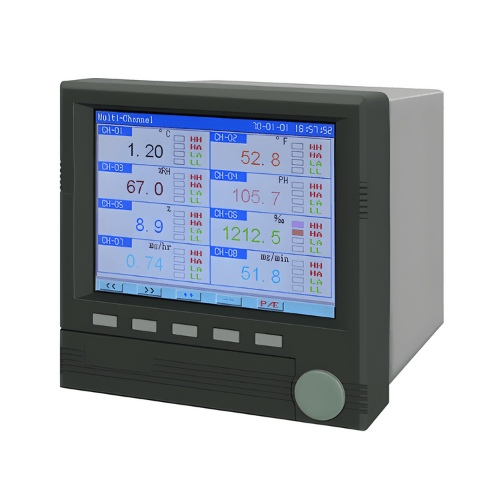

Acoustic Testing Pro Channel Paperless Recorder
Acoustic Testing Pro channel paperless recorder 16 Channels Data Logger (144x144mm, up to 16 channels) is color TFT LCD display; completely isolated universal input such as thermocouple, thermal resistance, current and voltage, frequency input, can support multi-loop flow totalizer with automatic temperature and pressure compensation function; adopts modular structure output functions such as alarm, auxiliary power supply for sensors output, retransmission, print and communication etc.
Overview
Acoustic Testing Pro channel paperless recorder 16 Channels Data Logger (144x144mm, up to 16 channels) is color TFT LCD display; completely isolated universal input such as thermocouple, thermal resistance, current and voltage, frequency input, can support multi-loop flow totalizer with automatic temperature and pressure compensation function; adopts modular structure output functions such as alarm, auxiliary power supply for sensors output, retransmission, print and communication etc. Measuring data can be displayed in various types, such as graphic display as bar-graph, real-time trending, history trending memory, real time circular chart, history circular chart memory and alarming state display. also can be printed in curve and data by mini printer through RS232 port ; At the same time, it also provides features to check the data’s of year, month, day, hour, minute, second directly. Recorder can be configuration with OPC server, SCADA system and other professional software with MODBUS-RTU communication protocol through RS485 port. The history data can be downloaded directly by USB flash drive, plug and play, easy and flexible. PC supported data analysis software can print the data in curve and output Excel format for further analysis.
Technical Specifications
| Accuracy | ±（0.2%FS+1）digit |
| Power supply | 100-240VAC or 24VAC |
| Input Signal | .C: K, S, E, J, T, B, N, R, WRe526, WRe325RTD: PT100, CU50, CU100
Linear voltage: 0 V to 5 V, 1 V to 5 V Linear current: 0 mA to 10 mA, 4 mA to 20 mA Frequency input: 0 Hz to 5 KHz (one channel) Others: 0 mV to 20 mV, 0 mV to 60 mV, 0 mV to 100 mV, 0 mV to 500 mV |
| Output Module | 16 channels relay alarm output (Max) 4-20mA Retransmission output RS485 communication port RS232 print port DC5V/12V/24VDC aux. power supply USB port |
| Record time | Flexible setting interval time: 1 s, 2 s….3600 s Record Time: 45days |
| Screensaver Protection | Screensaver time setting for LCD background light auto off when no any operation in order to decrease the power consumption |
| Power-off Protection Time | The setting parameters and history data can be kept by FLASH MEMORY, memorized forever if power off. Hardware clock built in for still accuracy running. |
