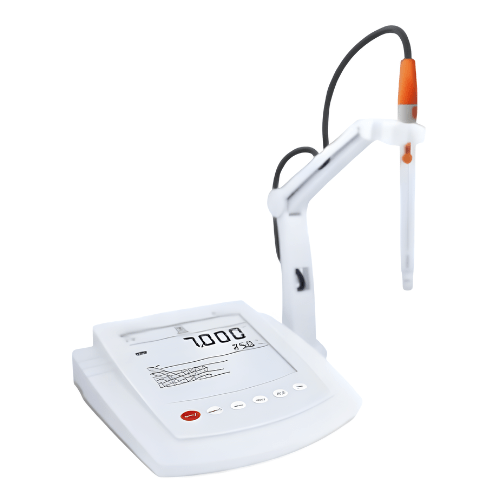

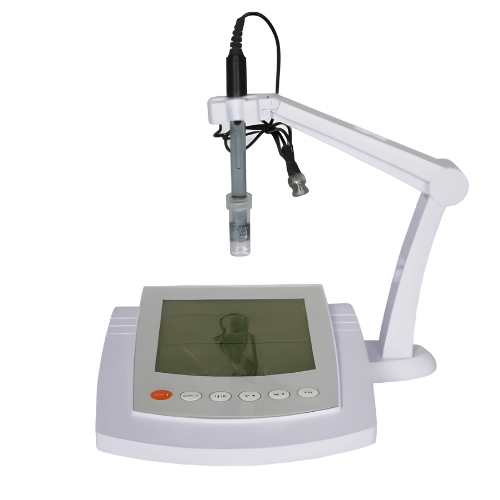

Acoustic Testing Pro Bio Base Benchtop Ion Meter
This Bio Base Benchtop Ion Meter has a pH accuracy of ± 0.002 pH, mv accuracy of ± 0.2 mV, and a calibration points of 1 point to 5 points.
Features
- 1 to 5 points push-button calibration with auto-buffer recognition
- Selectable pH buffer options or using the custom calibration solutions
- Automatic electrode slope display helps user decide whether to replace sensor
- 1 point offset calibration allows adjusting the displayed value to a known standard
- Relative and absolute mV measurement modes provide accurate ORP readings
- 2 to 5 points calibration providing the 8 concentration points can be selected
- Automatically recognize ion electrodes, does not need to specify the type of ion
- Selectable multiple concentration units include the ppm, mg/L and mol/L
- Auto-Hold function freezes stable reading for easy viewing and recording
- Automatic electrode diagnosis shows offset and electrode slope
- Expanded memory stores and recalls up to 500 readings
- Built-in real-time clock stamps stored data to meet GLP standard
Technical Specifications
| pH Range | – 2.000 ph to 20.000 pH |
| pH Accuracy | ± 0.002 pH |
| Resolution | 0.1 ph, 0.01 ph, 0.001 pH, Selectable |
| Calibration Points | 1 point to 5 points |
| Calibration Solutions | USA (pH 1.68 or pH 4.01 or pH 7.00 or pH 10.01 or pH 12.45), NIST (pH 1.68 or pH 4.01 or pH 6.86 or pH 9.18 or pH 12.45), DIN (pH 1.09 or pH 4.65 or pH 6.79 or pH 9.23 or pH 12.75) or User-defined |
| mV Range | – 1999.9 mv to 1999.9 mV |
| mV Accuracy | ± 0.2 mV |
| Resolution | 0.1 mV, 1 mV, Selectable |
| Calibration Points | 1 point (Only for Relative mV mode) |
| Ion Concentration Range | 0.001 ppm to 19999 ppm, mg/L, mol/L (Refer to the range of ISE) |
| Ion Concentration Accuracy | ± 0.5 % F.S (Monovalent), ± 1 % F.S (Divalent) |
| Calibration Points | 2 points to 5 points (0.001 ppm, 0.01 ppm, 0.1 ppm, 1 ppm, 10 ppm, 100 ppm, 1000 ppm, 10000 ppm, mg/L, mol/L) |
| Memory | Stores up to 500 data sets |
| Output | USB Communication Interface |
| Connector | BNC |
| Temperature Range | 32 °F to 221 °F, (0 °C to 105 °C) |
| Temperature Accuracy | ± 0.9 °F ± (0.5 °C) |
| Temperature Compensation | 32 °F to 212 °F (0 ℃ to 100 °C) |
