Name: Acoustic Testing Pro Benchtop Thermocouple Temperature Data Logger - Acoustic Testing Pro
SKU: ACTPBTDL-192

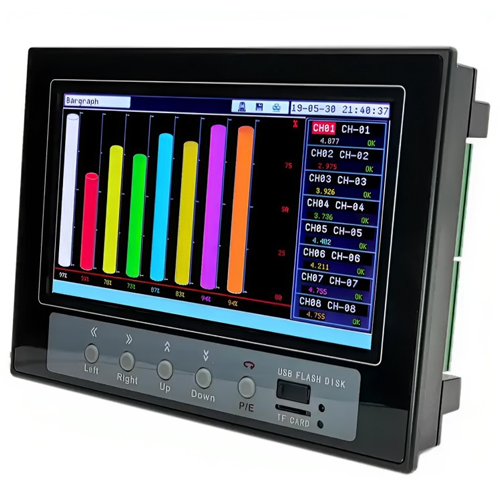

Acoustic Testing Pro Benchtop Thermocouple Temperature Data Logger

Acoustic Testing Pro benchtop thermocouple temperature data logger has powerful programmable universal input each channels, to achieve various parameters measuring and recording a unit, each channels are isolated individually, meanwhile with various output, download, communication function.

Overview

Features

Technical Specifications

Accuracy	±(0.2% FS +1) digital
Display	7 in (177.8 mm) Color LCD TFT
Power supply	100 V AC to 240 V AC standard
Sampling	1 s per 8 channels
Memory Capacity	Memory capacity can be set flexibly according to the memory interval time setting. Huge capacity for long time data saving up to 10 years with power off protection
Memory Interval time	1 s, 2 s to 3600 s, can be set flexibly as required in recorder
Screen Display	Various screen display in digital, trend, barograph, circular chat display
PC software	Powerful software function: to display memorized data in digital curve, Print Data and export the data to excel for further analysis
Universal Input	Thermocouple, RTD, Analog, mV, frequency input, programmable
Input Channels	8 Channels
Channels Isolation	400 V AC photoelectrical isolation
RS 485 communication	Standard MODBUS RTU protocol,
Relay output	3 A, NO, max 16 relay output, configurable for channels
Ethernet Communication	Standard ethernet MODBUS TCP or IP protocol
feed output	auxiliary 24 V DC output for transmitter
Print	printing output for data in digital and curve
Flow totalizer	with temperature, pressure compensation for channels
Size	7.48 in × 5.70 in × 2.38 in (190 mm x 145 mm x 60.5 mm)
