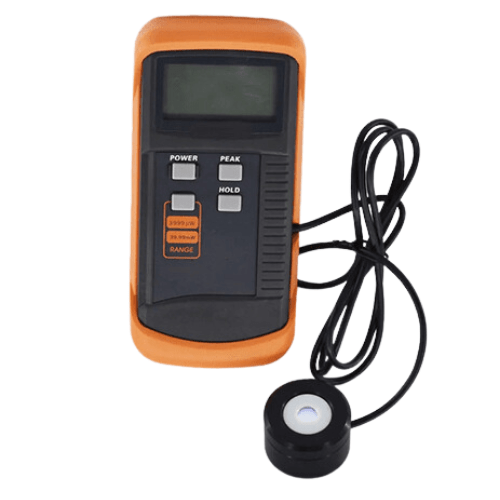

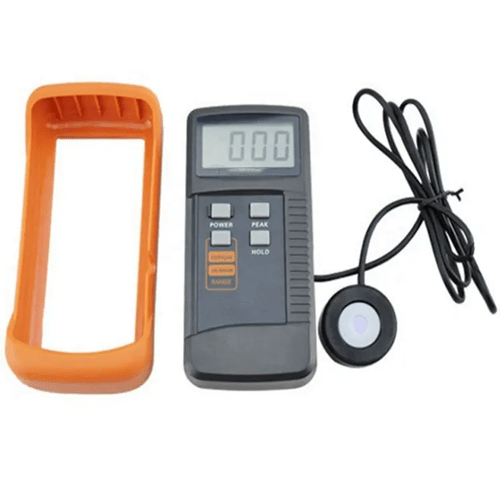

Acoustic Testing Pro Benchtop Radiation Meter
This Benchtop Radiation Meter has a wavelength coverage of 248 nm to 262 nm, an irradiance measuring span of 3999 uW and a battery of DC 9 V.
Features
- Narrow band spectrum 248 nm to 262 nm
- 254 nm peak wavelength
- Large scale integrated circuit ensures high precision and stability
- UV probe comprises of visible light insulation diaphragm
- Shell of aluminum alloy probe is equipped with fixed screw holes
Technical Specifications
| Wavelength coverage | 248 nm to 262 nm |
| Peak wavelength | 254 nm |
| Irradiance measuring span | 3999 uW/cm2, 39.99 mW/cm2 |
| Resolution ratio | 1 uW / cm2 |
| Parasitic light beyond ultraviolent band | <0.1% |
| Accuracy | ±5% +2 words |
| Sampling rate | 2.5 times per second |
| Power supply | DC 9 V (battery not Included) |
| Operating current | 2.7 mA |
| Humidity | <80% RH |
| Operating temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimensions | 6.29 in x 3.07 in x 1.69 in (160 mm x 78 mm x 43 mm) |
| Sensor Dimension | 1.57 in x 1.37 in (40 mm x 35 mm) |
| Weight | 0.77 lb (350 g) |
