Acoustic Testing Pro Benchtop Multi Channel Temperature Data Logger
Acoustic Testing Pro benchtop multi channel temperature data logger adopts a high-performance ARM micro processor, can collect multi-channel temperature data simultaneously and respond quickly.
Overview
Acoustic Testing Pro benchtop multi channel temperature data logger adopts a high-performance ARM micro processor, can collect multi-channel temperature data simultaneously and respond quickly. It have the function of checking broken thermocouple, high or low beep function and communication transmission. 128 channels’ temperature data can be extended, compatible with various temperature sensors. Support RS-232 communication, realize data acquisition, analysis and print through the standard computer software. Has USB disk storage and store real-time sampling data. The users can adjust data for each channel independently.

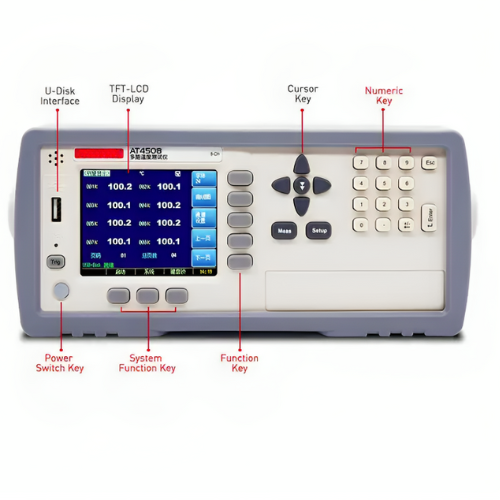

Features
- LED Display
- Numeric Keys
- Side heat emission
Technical Specifications
| Graduation | Thermocouple J, K, T, E, S, N, B, R |
| Accuracy | 0.2% 33.8 °F (+1 ºC) |
| Measurement Range | -328 °F to 2372 °F(-200 ℃ to 1300 ℃) (Varying depend on graduation) |
| Resolution | 32.18 °F (0.1 ºC) |
| Speed | Fast 100 ms/channel Medium 500 ms/channel Slow 1 s/channel |
| Correction | Error correct for each channel |

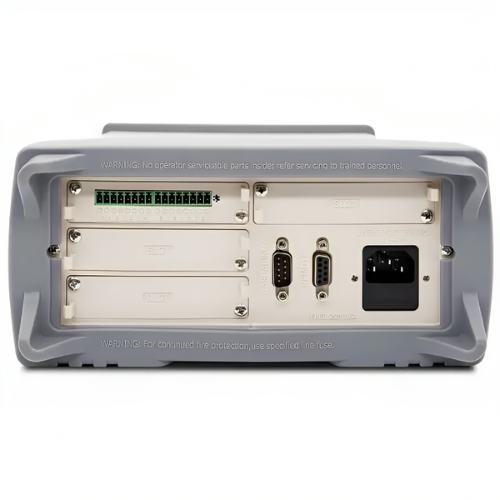

| Interface | RS 232 C interface U-disc interface USB communication interface |
| Software | ATS 45 data acquisition software |
| Cold Junction | Accuracy 32.9 °F (0.5 ºC) |
| Compensation | |
| Others | TFT-LCD True-color LCD display, broken thermocouple check function |
| Power Supply | Voltage 85 V AC to 260 V AC Frequency 50 Hz or 60 Hz Power 10 V A |

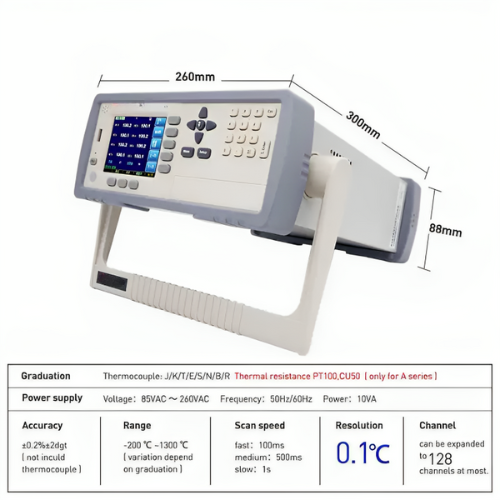

| Size | 8.50 in x 3.46 in x 11.81 in (216 mm x 88 mm x 300 mm) |
| Weight | 6.61 lb (3 kg) |
