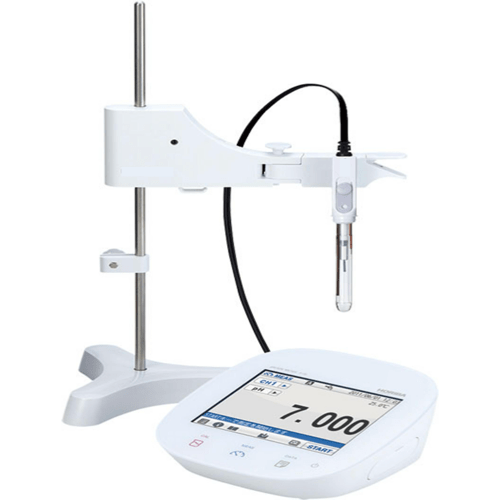

Acoustic Testing Pro Benchtop Fluoride Ion Meter
This Benchtop Fluoride Ion Meter has an ion concentration range of 0.02 ppm to 1900 ppm, mV resolution of 0.1 mV, and accuracy mV of ±0.2 mV.
Features
- Backlit LCD for precision reading
- 2-5 points calibration, 8 concentration
- Direct ion readout for simplicity
- Selectable units – ppm, mg / L, mol / L
- Accurate readings with temp compensation
- Auto-Read locks measurement endpoint
- Calibration due alarm for regular calibration
- Auto electrode diagnosis with calibration info
- Setup menu for customizable settings
- Reset to factory defaults feature
- Memory for 500 data sets
- USB for easy data transfer to PC
Technical Specification
| Range | 0.02 ppm to 1900 ppm |
| Resolution | 0.001, 0.01, 0.1, 1, automatic |
| Accuracy | ±0.5% F.S. |
| Calibration Points | 2 to 5 points |
| Calibration Solutions | 0.001 or 0.01 or 0.1 or 1 or 10 or 100 or 1000 or 10000 |
| Measurement Units mV |
ppm, mg/L, mol/L, mmol/L |
| Range | -1999.9 mV to 1999.9 mV |
| Resolution | 0.1 mV |
| Accuracy Temperature | ±0.2 mV |
| Range | 32 °F to 221 °F (0 °C to 105 °C) |
| Resolution | 0.1 °C /°F |
| Accuracy | ±0.9 °F (±0.5 °C) |
| Offset Calibration | 1 point |
| Calibration Range Other Specifications |
Reading ±10 °C /°F |
| Hold Function | Manual / Auto-read measurement endpoint |
| Stability Criteria | Low / High |
| Calibration Due Alarm | 1 to 31 days or off |
| Memory | Stores up to 500 data sets |
| Output | USB communication interface |
| Connector | BNC, 0.13 in (3.5 mm) jack socket |
| Display | Custom LCD 4.92 in × 3.93 in (125 mm × 100 mm) |
| Power Supply | 5 V DC power adapter |
| Environmental Conditions | 32 °F to 122 °F (0 °C to 50°C), relative humidity < 80% |
| Temperature Compensation | 32 °F to 212 °F (0 °C to 100 °C), manual or automatic |
| Dimensions | 8.26 in × 7.40 in × 2.36 in (210 mm x 188 mm x 60 mm) |
| Weight | 3.30 lb (1.5 kg) |
