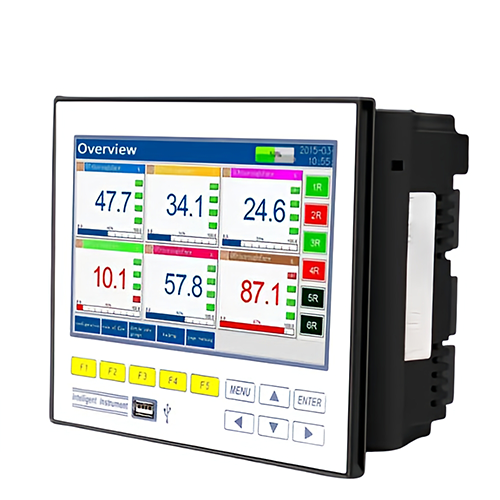

This Analog Chart Temperature Humidity Data Logger has a resistor input of 0 Ω to 400 Ω, a radiation pyrometer of F1, F2, and 16 channels input.

SKU: ACTPTHDL-201 Category:

Feature

  • 16 Channels input
  • Relay alarm function
  • Data backup
  • 220 VAC power supply



Technical Specifications

Screen 7 in (177.8 mm) true color TFT LCD (800 x 480 dot matrix)
Accuracy Real time display ±0.2% F.S.
Recall accuracy ±0.2% F.S.
note thermocouple should remove cold end error)]
Processor High performance arm Cortex M3 32 bit RISC core can be used to collect, record, display and alarm multiple signals at the same time
Memory Module Large capacity parallel NAND FLASH flash chips are used to store historical data, and serial FRAM storage chips are used to store key parameters such as configuration parameters
Input Specification Fully isolated universal input, maximum support 16 analog input
Voltage Input 0 V to 5 V, 1 V to 5 V, 0 mV to 20 mV, 0 mV to 100 mV
Resistor Input Res 0 Ω to 400 Ω
Thermal Resistance PT 100, Cu 50, G 53, Cu 100, BA 1, BA 2, Three wire resistance balance, lead resistance < 10 Ω
Thermocouple S, B, K, T, R, E, N, J
Radiation Pyrometer F1, F2
Tungsten Rhenium WRe3-25 WRe5-26
Current Input 0 mAn to 10 mAn, 4 mAn to 20 mAn, 0 mA to 20 mA
Distribution Output Up to 3 sets of transmitters are supported for isolated distribution 24 V DC, each group of distribution ≤ 60 mA, support other specifications of isolated distribution (e.g. 12 V DC or 5 V DC distribution output)
Transmission Output Support up to 4 channels standard current output, load capacity 750 Ω maximum, convenient display instrument or DCS, PLC acquisition, achieve long distance signal transmission
Relay Alarm Output Up to 6 relay alarm output, contact capacity 1 A at 250 VAC or 1 A at 30 V DC, maximum contact capacity customizable, can be configured as upper limit, lower limit alarm.
Communication Interface Providing RS 232 C and RS 485 communication interfaces for users to choose from, supporting the use of RS 232 C and RS 485 at the same time, supporting the use of RS 232 C and RS 232 C at the same time, supporting Modbus RTU protocol, baud rates 1200 N 48009600, 19200, 38400, 57600)
Print Interface RS 232 C direct connection to micro printer, baud rate 1200
Recording Capacity 64 MB, 128 MB, 1922 MB, 248 MB, flash capacity optional
Recording Interval 1 sec to 240 sec, divided into 11 files 1 or 2 sec, 4 sec, 4 sec, 8 sec, 12 sec, 24 sec, 36 sec, 60 sec, 120 sec, 180 sec, 240 sec
Data Transfer Data backup and storage support USB 1.1 USB 2.0 USB disk, support 1 G to 32 GB U disk for data transfer, strong compatibility, compatible with most of the U disk on the market
Power Supply Voltage Power supply 100 VAC or 240 VAC, rated 220 VAC, 50 Hz or 60 Hz AC power supply, 24 V DC, 18 V DC to 36 V DC
DC power supply, 12 V DC, 9 V DC to 18 V DC, DC power supply
Power Off Protection Built in memory protection parameters and historical data, permanent storage after power off
Clock Protection Integrated hardware clock, can also run accurately after power down
Relative humidity 0% RH to 85% R.H (without condensation)
Altitude <1.242 mi (2000 m) (other than special specifications)
Working temperature 32 ℉ to 122 ℉ (0 ℃ to 50 ℃), avoid direct sunlight
Instrument Net Weight Net weight ≤3.28 lb (1.5 kg)
