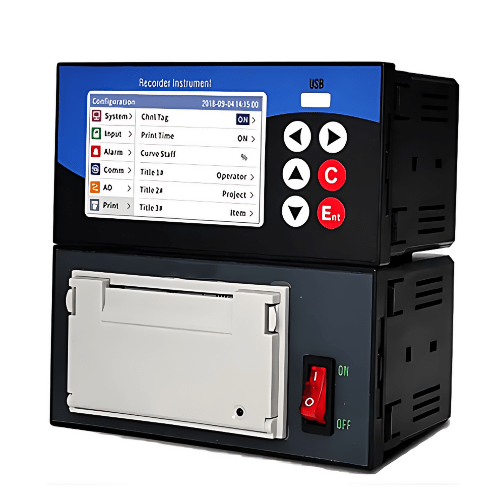

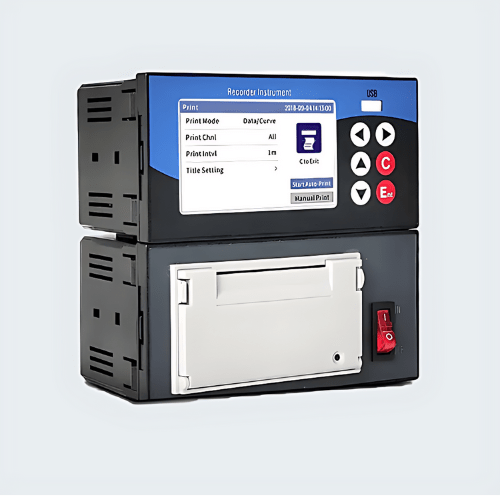

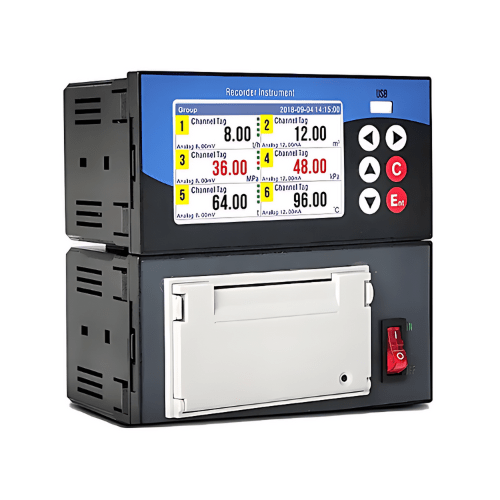

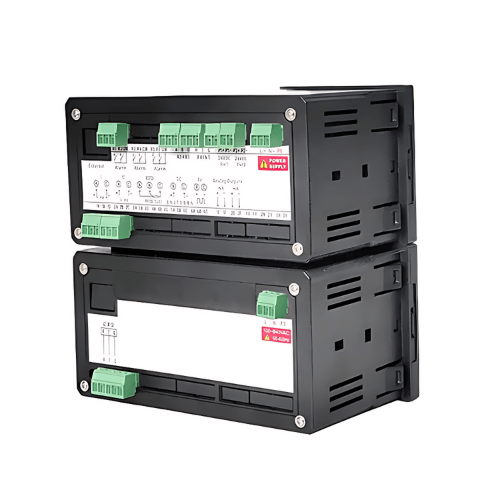

Acoustic Testing Pro Alarm-Enabled Printing Temperature Data Loggers
This Alarm-Enabled Printing Temperature Data Loggers has input channels of 6, input function of 0 mV to 20 mV and an altitude of <2000 m.
Features
- 6 channels input
- Relay alarm function
- Print mode
- Ribbon printer
- ARM processor fast operation
- Multiple signal inputs
- Automatic or manual printing of data or curves
- Data backup
- LCD liquid crystal display
Technical Specification
| Accuracy | Real time display ±0.2% F.S
Recall accuracy ±0.2% F.S |
| Processor | High performance arm Cortex-M3 32-bit RISC core can be used to collect, record, display and alarm multiple signals at the same time |
| Input Function | Voltage input 0 V to 5 V, 1 V to 5 V, 0 mV to 20 mV, 0 m V to 100 mV
Current input 0 mAn to 10 mAn, 4 mAn to 20 mAn, 0 mA to 20 mA |
|
Data Transfer |
Data backup and storage support USB 1.1 USB 2.0 USB disk, support 1 G to 32 GB U disk for data transfer, strong compatibility, compatible with most of the U disk on the market |
| Power Supply Voltage | Power supply 100 V AC or 240 V AC (rated 220 V AC) 50 HZ or 60 HZ AC power supply, 24 V DC (18 V DC to 36 V DC) DC power supply, 12 V DC (9 V DC to 18 V DC) DC power supply |
|
Defensive Function |
Power off protection built-in memory protection parameters and historical data, permanent storage after power off
Clock protection integrated hardware clock, can also run accurately after power down |
| Humidity | 0 RH to 85 RH |
| Altitude | Altitude <2000 m |
| Temperature | 32 °F to 122 °F (0 ℃ to 50 ℃) |
| Weight | 3.30 lb (≤ 1.5 kg) |
