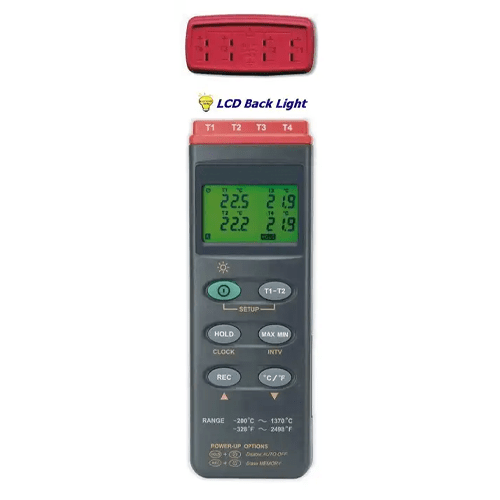

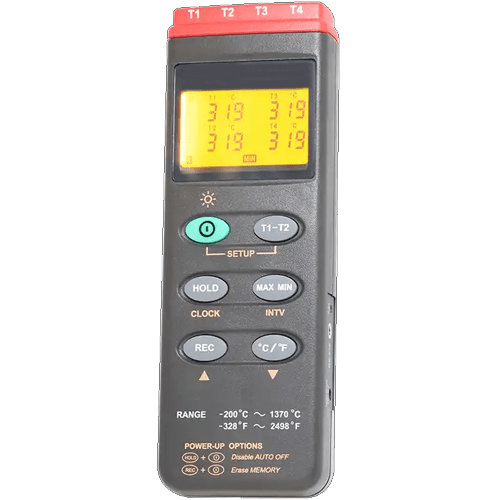

Acoustic Testing Pro 4 Channel Industrial Temperature Data Logger
This 4 Channel Industrial Temperature Data Logger has a power requirement of 9 V, a sampling rate of 3 sec, and data logging capacity of 16,000.
Feature
- Data Logging capacity 16,000 records for each channel
- 4 Digit LCD display for every tested point
- Recording interval set up
- Reading hold ℃ or ℉ annunciators
- 4 channel thermocouples can be used
- simultaneously and recorded
- MAX, MIN Function
- Auto Power off
- Hold functions
- Automatic low battery indication
- High resolution 0.1 ℃, 0.1 ℉

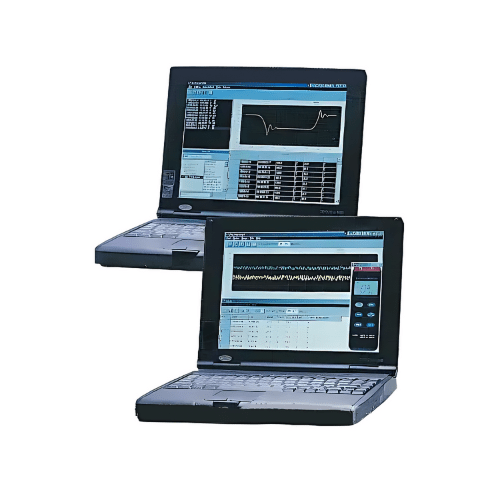

- RS 232 Computer interface
- Standard Tripod mount connector
Technical Specifications
| Sensor | K type Thermocouple probe |
| Sampling rate | 3 sec per testing circle |
| Input Protection | 60 V DC or 24 V rms AC Maximum |
| Power Requirement | 9 V battery |
| Temperature scale | ℃ or ℉ user selectable |
| K Range | 2 00 ℉ to 2498 ℉(93.3 ℃ to 1370 ℃),±(0.3% reading +1 ℉ (-17.2 ℃)) |
| Resolution | 0.1 ℃ or 0.1 ℉,392 ℉ to 2498 ℉ (200 ℃ to 1370 ℃),33.8 ℉ (1 ℃) |
| Dimensions | 7.2 in x 2.5 in x 1.2 in (184 mm x 64 mm x 30 mm) |
| Weight | 7.4 oz (210 g) |
