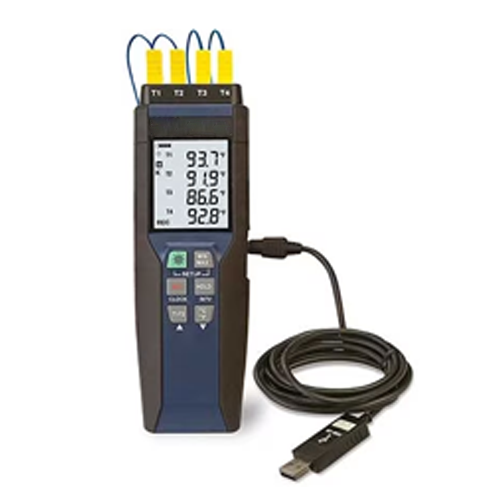

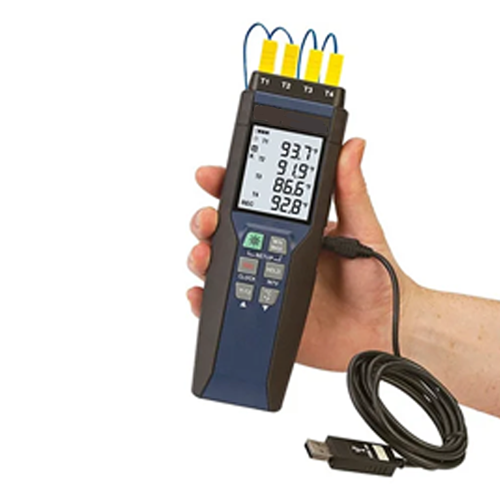

Acoustic Testing Pro 4-Channel Digital Temperature Data Logger
Features
- High-accuracy temperature sensors
- Wide range temperature
- Data logging
- Large data storage capacity and user configurable sampling intervals
- Four channel monitoring with alarm function
- User friendly interface with USB connectivity
Technical Specifications
| Measurement range | -328 °F to +2498 °F (-200 ℃ to +1370 ℃) |
| Data logger accuracy | ± (0.1 % reading + 0.7 °C), ± (0.1 % reading + 1.4 °F)Below -100 °C (-148 °F) ± (0.4 % reading + 0.7 °C (1.4 °F) |
| Resolution | ± 32.18°F (± 0.1 ℃) |

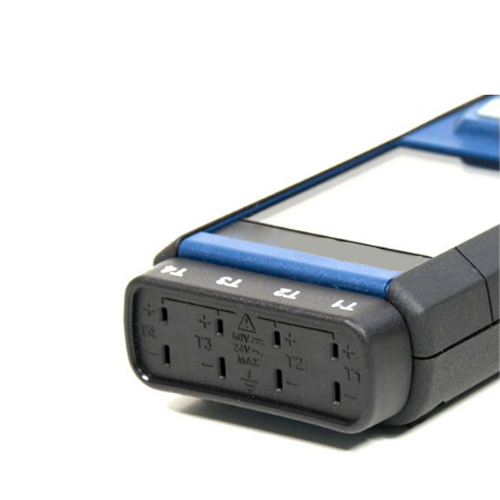

| Sensor | K, J, E, T type Thermocouple probe |
| Sampling rate | 3 seconds per testing circle |
| Power requirement | 1 piece 9 V battery |
| Accessories | RS-232 cable and software for WINDOWS), Deluxe carrying case |
| Input Protection | 60 V DC or 24 V rms AC Maximum |
| Dimension | 7.24 in x 2.51 in x 1.18 in (184 mm x 64 mm x 30 mm) |
| Weight | 0.46 lb. (210 g) |
